Oricom Babysense7 Breathing Movement Monitor

Babysense7 is included as a medical device on the Australian Register of Therapeutic goods (ARTG No. 97479).

Yes, extremely simple to set up and operate, however we strongly recommend the user guide instructions be followed and functionality regularly tested.

Yes, it uses 4 x AA Alkaline batteries (not supplied) so you can move it easily.

The babysense7 is Powered by 4 x AA, 1.5-volt Alkaline batteries (not supplied). Power consumption is approximately 1mA. Battery life is approximately 6 months using high quality alkaline batteries.

Yes, as long as the base is rigid and a suitable mattress is used and you must ensure that excess cords are secured under the mattress out of reach of baby or other infants. Modifications may be required to the bassinet for sensor pad wiring access and controller unit placement.

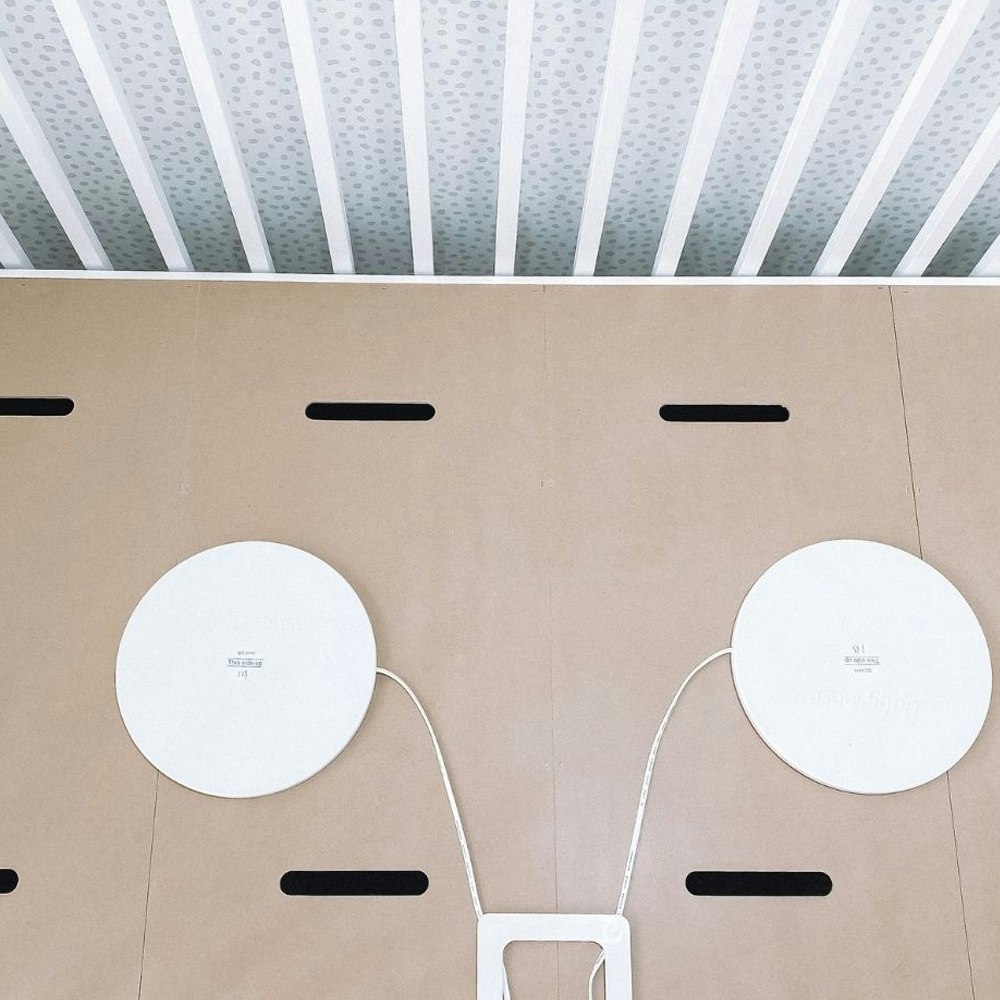

It comes with two highly sensitive sensor pads that cover the area of a standard sized crib or cot.

It is suitable for healthy infants up to one year (12months) of age (it cannot be used for children or adults).

No you will need to have babies in separate cots, each with its own Babysense7 monitor.

Batteries are not inserted incorrectly or may be flat. Check batteries are inserted in the Control unit observing the correct polarity. Control unit requires 4 x AA 1.5V Alkaline batteries (not supplied).

Batteries are low, replace all 4 batteries.

The mattress is not touching the sensor pads. The mattress is raised (there is an object near the sensor pads). Two sensor pads are connected but the baby is not yet crawling. Only one sensor pad is connected and the baby has crawled off the sensor pad. The mattress does not enable adequate transfer of baby movement – The compositions of some cot mattresses may not conduct vibrations associated with babies breathing movement and may not be suitable with Babaysense7. Do not use Babysense7 with a memory foam mattress. Make sure that the mattress and sensor pads are touching. Make sure that there are no objects next to the sensor pads. Connect sensor pads as per the user manual. If baby is not yet able to crawl, use only one sensor pad – and make sure sensor is placed underneath baby’s location in bed to ensure greater relative sensitivity. Place a sheet of plywood (not supplied) under the sensor pad so that the sensor pad and the mattress will be tightly pressed together.

Performance test is not correct. Do not conduct performance test by taking the baby out of bed and waiting for the alarm to go off. Kindly conduct performance test according to the performance test instruction in user guide. The alarm does not go off within 20 seconds when performing the correct performance test Environmental Influences detected by the sensor pads, such as wind, fan, air-conditioner, toy mobile vibrations. Perform a test which will detect the source of the movement that the device detects, eg; sources of wind such as air conditioner, an open window or a fan, movements of baby mobile (which can vibrate even if it’s not turned on) walking around the bed area or an intercom placed near the bed with intense transmission levels. Eliminate sources of wind, remove the mobile etc. After neutralising all environmental interruptions, perform the test again.

Babysense7 is intended for healthy newborn infants from birth and up to 1 year of age. Babysense7 is set to recognise a defined breathing movement rate of infants within this age group (the alarm sounds if breathing stops for 20 seconds or if the breathing rate slows to below 10 breaths per minute).

No. You should contact your GP or medical specialist and seek their advice on what alternative suitable methods of monitoring your infant are available.

The Babysense7 detects the movement produced by a baby’s breathing. A newborn, being smaller, may not have as much movement than a 3 or 4-month-old baby, and when two sensor pads are connected it does reduce the sensitivity of the pads, a little, no problem for an older baby but maybe a little more difficult to detect the movement for a new born baby. This is why it is always best to follow the instructions in the user guide including performing a regular (daily) test of the monitor. Babysense7 is intended for use as an Infant Apnoea Alarm. ALWAYS READ THE LABEL AND USER GUIDE, USE ONLY AS DIRECTED.
