Ionmax+ ED18 Industrial Grade Desiccant Dehumidifier

Ionmax+ ED18 Industrial Grade Desiccant Dehumidifier

A Desiccant dehumidifier that has your entire building covered

The Ionmax+ ED18 Industrial Grade Desiccant Dehumidifier efficiently maintains the dryness of multiple rooms through ducting designed to operate 24/7. Compatible with optional HEPA filters and easily controlled via mobile app.

No heavy moisture is too much to handle with the Ionmax+ ED18 Desiccant Dehumidifier. This unit can be used as a centralised dehumidifier throughout the building and removes up to 19L of moisture a day. No humidistat installation is needed as settings can be adjusted via the mobile app.

Ionmax+ ED18 Dehumidifier Features

How It Works

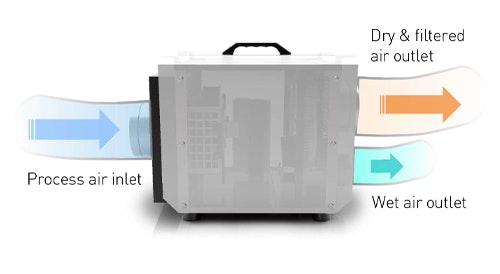

The air to be processed is suctioned via a filter into the cabinet by a centrifugal fan. The pressured air mainly passes a desiccant rotor to leave moisture on it and becomes dry air flowing out through the main outlet.

A motor slowly drives the rotor to pass through a heater-collector portion where the moisture on the rotor will be evaporated out to the wet air outlet, and the rotor is regenerated for later moisture absorption.

The wet air is a small part of the pressured air that passes the heater to be heated up and then passes the rotor to bring moisture out. Works 4-6 times better than 25L conventional dehumidifiers at temperatures below 25°C.

Compatible with the Ionmax App

Ionmax+ ED18 Dehumidifier Specifications

Cleaning and Maintenance

The dehumidifier is designed for continuous use over a long period with minimal supervision. Under normal operating conditions, maintenance requirements are minimal. The service depends mainly on the operational conditions and working environment.

Cleaning

1. Disconnect from the power supply before cleaning or servicing the unit or any of its components.

2. Wipe thoroughly clean with a moist cloth (a soft, damp cloth) and a mild household detergent. DO NOT clean any parts of the dehumidifier by spraying it or immersing it in water. DO NOT use any chemicals, petrol, aggressive detergents or other cleansing solutions when cleaning the dehumidifier.

Product Comparison

Model	DryFan DF8	DryFan DF12	DryBoat DB8	DryBoat DB12	ED18 Dessicant
Flanges	Input	Input and Output (best suited for inline ducted air conditioning systems)	Input	Input and Output	Input and Output
Extraction Rate	8 litres/day	12 litres/day	8 litres/day	12 litres/day	19 litres/day
Power Consumption	350W, 220V, 50Hz	500W, 200V, 50Hz	350W, 220V, 50Hz	500W, 200V, 50Hz	850W, 220-240V, 50Hz
Material	Mild Steel Epoxy Paint		Stainless Steel		Electro-Galvanized steel
Plug	10A		10A		-
Humidistat Option	Yes		Yes		No
Power Cord Length	3m		3m		-
Noise Level	49dB	52dB	49dB	52dB	56 +3 dB
Duct Sizes	40mm - 125mm		40mm - 125mm		56mm - 115mm
Operating Temperature	-20℃ ~ 40℃		-20℃ ~ 40℃		-15℃ ~ 40℃
Power Out Restart	Yes		Yes		-
Work from DC-AC Converter	Yes		Yes		-
Water Tank	Yes 3.5 Litre	No	No	No	No
Airflow(m3/hr)	90 process/14 exhaust	124 process/20 exhaust	90 process/14 exhaust	124 process/20 exhaust	-
Dimensions	19 x 19 x 19 cm	28 x 19 x 19 cm	19 x 19 x 19 cm	28 x 19 x 19 cm	31.2 x 46.3 x 31.8 cm
Weight	4.8 kg	6.4 kg	4.8 kg	6.4 kg	13 kg
Coverage Area	74 m2	111 m2	74 m2	111 m2	80 m2
	View	View	View	View	You are viewing this product
